The RB26 Crop Sprayer. Lightweight design, heavyweight performance.

RB26 Highlights

About the RB26 Crop Sprayer

The most agile and compact model in the Bateman range, the RB26 crop sprayer is the ideal solution for growers requiring a highly capable machine when spraying in challenging conditions.
BBL & PWM available as an option



Highlights



3000 litre stainless steel tank






18 – 24 metre standard Contour boom






24 – 36 metre Variable Geometry (V.G) boom






John Deere 185 bhp, 6 cylinder turbo diesel

Contact us about the RB26 Crop Sprayer

    RB26 Specification

    DIMENSIONS (dependent on specification)

    Height: 3.2mWheel base: 3.3m
    Width: 2.8mTurning radius: 4.8m
    Length: 7.0mWeight: 6810kg
    Ground clearance (standard): 0.85mFuel capacity: 350 litres

    STEERING

    Positive link 2/4-wheel steer, fully hydraulic

    SUSPENSION

    Hydraulic fully active front and rear

    WHEEL TRACK

    Hydraulic adjustable axles with variable track width & optional display

    ENGINE AND TRANSMISSION

    John Deere 185 hp 6-cylinder water cooled Turbo-charged diesel
    Fully Hydrostatic four wheel drive, variable
    from 0 up to 50 kph (depending on wheel size)
    Hydrostatic and dynamic braking. Parking brake manually operated or automatically applied when the engine is stopped

    CAB

    Steel construction, with panoramic tinted glass
    Dynamic suspension
    Cladded and soundproofed
    CAT 4 carbon filtration
    Automatic climate control system
    DAB radio/DVD player with 6" LCD touch screen, including Bluetooth phone system and MP3/USB connectivity
    Roof mounted 360 degrees working lights, and warning beacon
    Wash wipe windscreen wiper - 3 speeds including intermittent wipe
    Large extendable wing mirrors
    Fresh water hand/eye wash
    Pneumatically operated step
    Air suspension seat with fore and aft movement
    Raise, lower and tilting steering column
    External airline pickup point
    Rear view full colour camera
    Buddy seat with back support

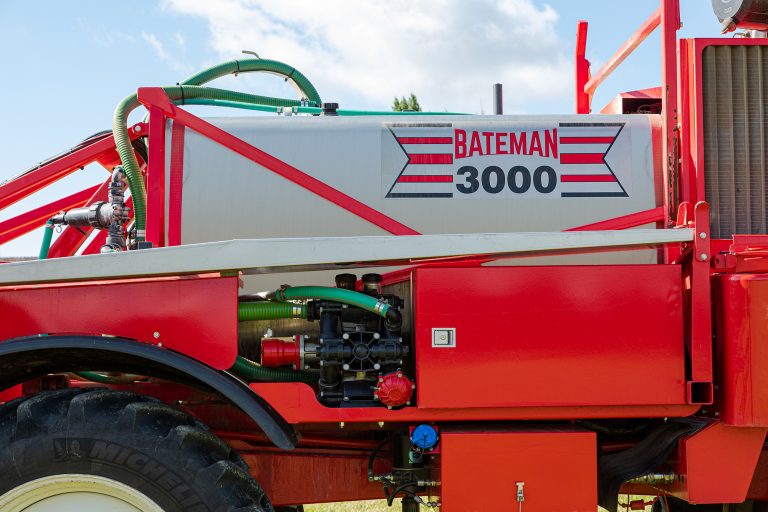

    TANK (Stainless Steel)

    3000 litres fully baffled, tank contents gauge with dry indicator
    Built in clean water rinse tank

    BOOM

    Bateman Contour 12/20/24 m 'Gull Wing' fold
    Bateman (V.G) Variable Geometry Contour up to 36 m
    V.G boom options
    12/20/24 m
    12/24/ to either 28-30-32 or 36 m
    Other variations are available
    Triplet nozzles with 3 sets of jets

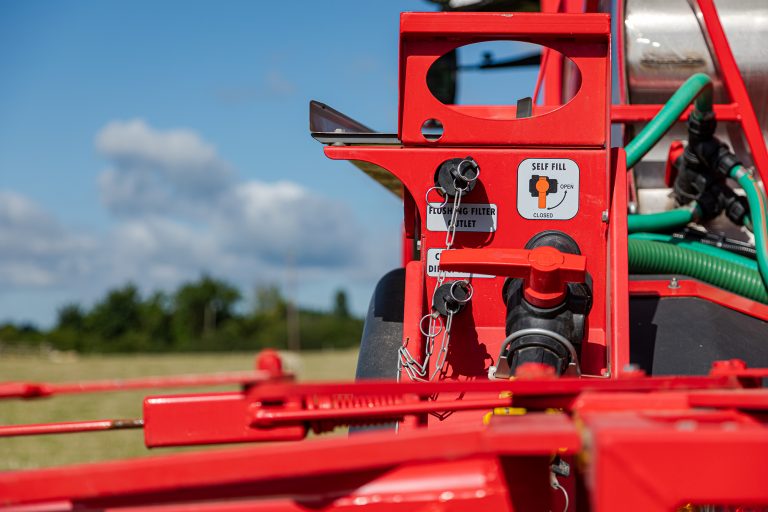

    FILLING

    4 cylinder 270 litre/min piston diaphragm pump
    Stainless steel 30 litre chemical hopper, can wash/bowl rinse, with twin venturi
    Self-fill or bowser quick fill

    CONTROLS

    InCommand 800 rate controller with wheel speed sensor
    Electric tapping system giving in-cab control of tank and sprayline rinse
    Auto priming system
    Ramsay box

    DEMOUNTING

    Full set of demount legs and jacks

    WHEELS (Row Crops)

    Standard Boom: 12.4/R32 (320/85R32)
    VG Boom: 14.9/R34 (380/85 R34)

    CONTROLS

    Joystick command arm forward/reverse and sprayline controls
    Electro-hydraulic spray pump and boom controls

    EXAMPLE OPTIONS

    Twinline with multi-jet options
    Spreader skid unit, mudguards and demount jacks
    Automatic section control
    Low ground pressure tyres
    Boom height control
    400 litre/minute 6 cylinder spray pump
    Twin spray pumps
    Electric heated & controlled mirrors
    2 & 3 speed wheel motors (6 ratios)
    Capstan AG Pinpoint III blended pulse modulation system

    Every inch perfected

    We know our machines inside out. Every last detail of a Bateman RB26 crop sprayer is designed and built by us to deliver outstanding performance in the most efficient way. Our sprayers are simple to operate, easy to maintain and return a low cost of ownership with fantastic residual value.

    Keep reading and discover why our policy of continuous development makes Bateman the sprayer of choice for farmers and contractors worldwide…

    The Cab...

    Custom built for comfort.

    Spending long hours in the field demands a comfortable
    and effortless operator environment. Our Panoramic 3 cab
    is designed and built in-house from the ground up. It is
    developed with our chassis and specifically designed for
    crop spraying with the emphasis on total operator comfort.

    Bateman Sprayers Cab interior

    Comfort begins the moment you sit in the high-backed, heated and cooled air suspension seat with fore and aft movement. Air quality and circulation is provided by a new climate control system featuring CAT 4 filtration.

    Visibility is second to none in a Bateman RB26 Crop Sprayer. Just two carefully positioned pillars dramatically reduce blind spots. To increase visibility further the rate controller is mounted on a retracting bracket.

    A more refined & much quieter in-cab experience is provided by improved insulation and the solid, air tight door.

    What this means for you…

    • Steel construction, with panoramic tinted glass
    • Automatic climate control system (heating and cooling)
    • DAB radio/DVD player with 6” LCD touch screen, including Bluetooth phone system and MP3/USB connectivity
    • Telescopic steering column with base and mid joint adjustment

    The Chassis...

    Balanced and agile.

    Our chassis is designed for ease of operation, safe weight distribution and minimal compaction across all terrains.

    RB55 Chassis

    The positive link two/four wheel steering is unique to a Bateman Sprayer. We fit a hydro-mechanical system which changes driving mode without the need of electronic sensors or manual operation.

    Time spent changing track width is dramatically reduced via a simple flick of a switch. An electronic display is also fitted for optional in cab track width adjustment.

    Maximum traction, weight distribution and a low centre of gravity is achieved with active suspension and the centrally mounted engine and spray tank.

    The Bateman RB26 crop sprayer is powered by a John Deere water-cooled, turbo-charged engine. These units generate power where and when you need it, return excellent fuel efficiency and meet stage IV emission standards.



    What this means for you…

    • Hydro-mechanical positive link two/four wheel steering
    • Active suspension system
    • Option of boosted hydrostatic and dynamic brakes
    • Removable sprayer pack
    • Hydraulic track width adjustment

    The Spraying system...

    Cool under pressure.

    Efficient, simple to use and highly effective, the Bateman spraying system gets the job done – every time.

    Bateman spraying system

    The efficiency begins with intuitively designed plumbing for high flow rates and faster filling times. All spraying system operations are performed at low engine revolutions for increased fuel efficiency.

    We build air valves into the spray control system, this produces faster, more accurate on/off control of the sprayline, minimising overlap, and increasing the efficacy of the chemicals and fertilizers applied.

    We offer a highly effective and well proven system which uses pulse width modulation. The benefits are individual nozzle control, maintaining optimum pressure and droplet size across a range of speeds.

    A further benefit of our system is turn compensation. This feature enables the whole boom to maintain optimum application, despite one end of the boom travelling faster than the other. Each nozzle individually adjusts its rate for the turn applying the perfect dose and consistent droplet size for the area it covers.



    What this means for you…

    • 28 mm stainless steel spray line with either single or multi-jet bodies
    • Baffled stainless steel spray tank and integrated clean water rinse tank
    • Options are available from 270 to 1000 litres per minute pumps
    • GPS system compatible spray line
    • Individual nozzle control with pulse width modulation

    The Standard Boom...

    Anything but standard.

    The Bateman Standard spray boom is renowned for strength, stability and exceptional performance.

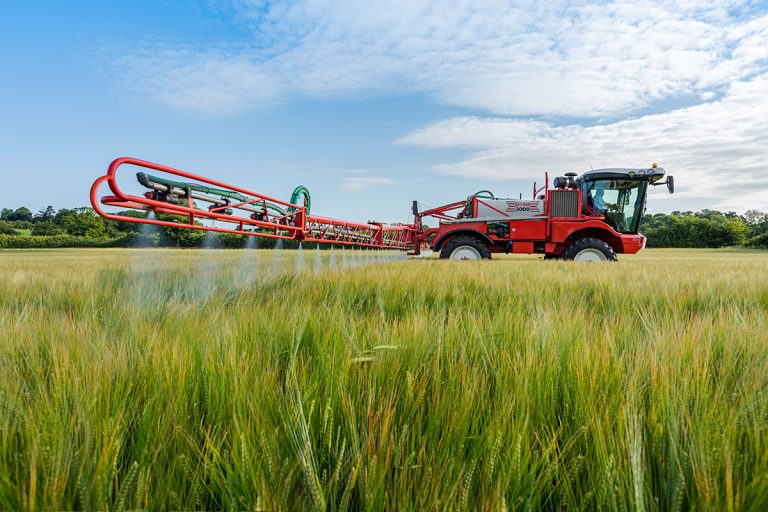

    Bateman Sprayers boom

    Designed for spraying in more compact environments, the Bateman Standard spray boom can be specified on the RB26 and RB35 models and is available from 18m to 24m widths.

    When unfolded a mechanical shear bolt system secures the boom in position and self-centring break-backs provide breakaway protection.

    What this means for you…

    • Available in 18m, 20m and 24m widths
    • Self-centring break-backs
    • Robust yet lightweight with contour hugging capabilities
    • Can be fitted with all the Bateman nozzle options: – Single nozzle, multi-nozzles and virtual twin-line
    • Nozzle bodies are protected within the boom framework reducing down time through breakage
    • Unique Bateman re-circulation system mean the tank and sprayline
      contents are ‘never still’

    The Variable Geometry Boom...

    Extreme durability and dependability.

    The Bateman Variable Geometry (VG) spray boom is a compact, modular design constructed from strong, specially sourced lightweight steel.

    Available in widths from 24m to 42m, the Variable Geometry spray boom is designed for medium to large-scale farm and contract spraying. This boom configuration is available as an option on the RB26 and RB35 and comes as standard on the RB55.

    The new Bateman Boom Levelling system has been designed in-house to work with all our Variable Geometry booms across the range.



    What this means for you…

    • Available spray widths from 24m to 42m
    • Hydraulic break-backs, at every fold point
    • Can be fitted with Bateman Boom Levelling (BBL)
    • In-house software gives maximum flexibility using positive and negative movement from horizontal
    • Multi-width spraying options on all VG booms
    • Capstan Ag PWM is an optional extra on the VG Boom

    The Accurate Fertiliser system...

    Raising the bar.

    The Bateman Accurate Fertiliser system represents the ultimate even-flow fertiliser spraying system.

    Bateman AccuRate system

    This innovative system is self-contained – the dribble bars are protected within the framework of the boom. Individual dribble bars are connected via an ingenious linking system forming a straight, solid line, which prevents accidental damage or twisting.

    Automatic section control can reduce over application, turning sections on and off at field boundaries and previously applied areas. Real time crop information is available via sensors that measure crop vigour.



    What this means for you…

    • Advanced software stores field mapping information in the command display memory
    • Visual screen guidance with integrated light bar
    • Variable application rate via prescription, satellite or aerial imagery
    • Electric or fully integrated, hydraulic GPS controlled steering systems
    • Boom height control can be fitted via the command display
    • Single spray line for easy application change with 4 settings via the stainless steel metering unit
    • All functions can be managed via one command display

    Pinpoint III PWM

    Hit the target every time.

    Developed with our partner, Capstan AG, PinPoint III Envelop™ is the next generation of blended pulse width modulation (PWM) system.  PinPoint III combines the pressure control and performance valve driving of PinPoint II but adds ISOBUS VT/UT compatibility along with full rate controller functionality, expanding the flow and pressure stability to another level of control all through compatible ISOBUS displays.  Individual nozzle resolution on your primary display allows for synchronized as-applied maps and volume counters and easier operation per a prescription map.

    Bateman Pinpoint II PWM

    Turn Compensation, Valve Diagnostics, easier nozzle profile changes, and setup are all redesigned to display and operate on the VT and continue to provide the operator-focused information that enable the most confident application possible.

    The expanded speed and application rate ranges that PWM is known for are still present with even better pressure and rate stability.  Further features include iOS/Android app-based software updates, the option to operate the system with even higher resolution on an iPad or tablet with increased overlap control*.  The system is also compatible with see-and-spray control systems.

    PinPoint II systems are able to be upgraded to PinPoint III to bring the new features to existing installations.

    *Additional hardware required.



    What this means for you…

    • Wider application speed range, no over/under misapplication
    • Drift management and turn compensation*
    • Uniform pressure and droplet size, chemical and time savings
    • Redesigned interface operates on VT
    • Pinpoint II systems can be upgraded to Pinpoint III

    *Turn compensation is a feature in pulse width modulation (PWM) sprayers in which nozzle output matches the boom’s speed during a turn.

    Download our Pinpoint III PDF here ››

    Bateman Boom Levelling...

    Spray more accurately with BBL.

    Bateman Boom leveling (BBL) is our proven boom leveling system. BBL enables spraying in all types of field and crop growth stage, under a vast range of light conditions and across a wide range of speeds.

    Bateman Boom Levelling system

    Sensors constantly monitor the contours of the terrain for variations in height. This results in a more dynamic boom response, greater agility and a more stable machine environment when spraying across widths of up to 42m.

    The BBL system has been designed to work with all our Variable Geometry (VG) booms.



    What this means for you…

    • No need to change any pre-programmed spray settings
    • Boom adjusts laterally when spraying across or up an incline
    • Boom height and consistency of spray are maintained when
      spraying in a dip
    • Spray in mixed terrain during fading or low light conditions, or
      when working at night
    • Smooth effortless boom control provides improved machine
      performance and reduced operator fatigue
    • BBL can also be retro fitted to some older models with VG booms
    Bateman Boom Levelling Infographic
