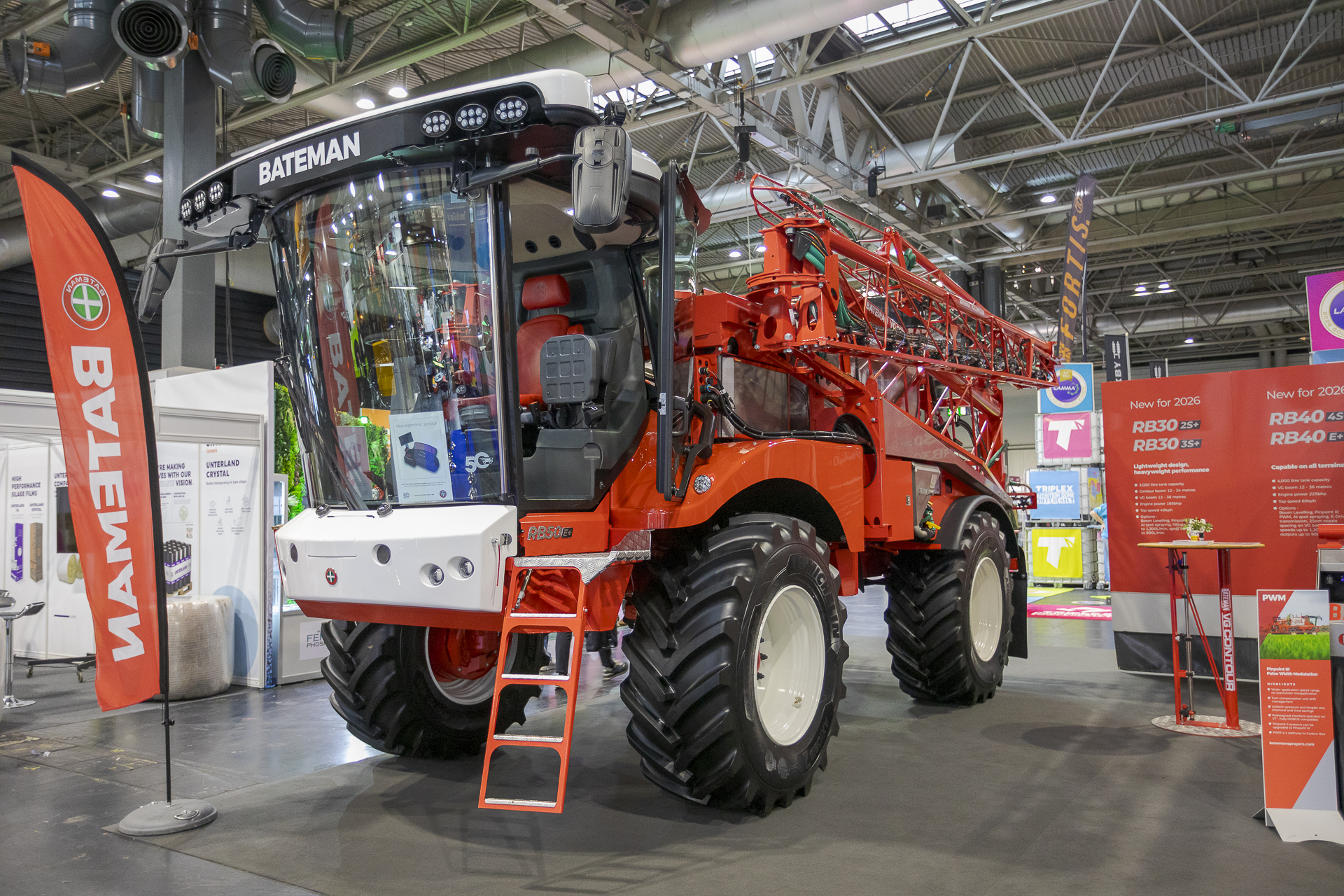

New Generation IV Variable Geometry Boom – the future, now

Flexible nozzle spacing for improved spray accuracy

One of the standout features is the flexibility of nozzle spacing. Operators can now choose between a standard 0.50cm spacing or a tighter 0.25cm configuration. The narrower option has been specifically designed to allow for a lower boom height during application, helping to significantly reduce drift.

Proven design enhanced for durability and serviceability

The new boom stays true to our design principles – lightness, strength and accessibility. A key function of this evolution is the focus on serviceability. Wearing parts have been redesigned so they can be replaced more easily and without major expense, reducing downtime and keeping machines working during critical spraying windows.

Advanced sensor technology for reliability in field conditions

Sensor technology has also been improved. The new system incorporates high-spec sensors with excellent IP ratings, meaning they are better protected against dust, liquids and harsh field conditions. Importantly, these sensors have no moving or wearing parts, which not only improves reliability but also reduces maintenance requirements over time.

Future-proof boom design with wider working options

The boom has been designed with future expansion in mind. The structure is capable of accommodating wider boom options. This future-proofing approach reflects a broader trend in agricultural engineering – equipment that evolves alongside farm businesses rather than limiting them. The modular design of our VG boom means it can be relatively straightforward to fit further sections retrospectively.

Improved balance and efficiency with integrated tank and plumbing design

Balance and efficiency have been central to the development process. The boom has been designed to work in harmony with the new tank and plumbing configurations. This achieves a lower centre of gravity and improved weight distribution, which translates into even better stability in the field, particularly across uneven terrain.

Refined hydraulics and seamless boom levelling performance

Hydraulic systems and rams have also been refined. These improvements ensure smoother, more responsive performance, working seamlessly with Bateman’s established BBL boom levelling system. For operators, this means greater confidence in maintaining consistent spray height and coverage, even in challenging conditions.

Key features of the new Bateman Sprayer boom

• Choice of 0.50m (standard) or 0.25m nozzle spacing
• 25m spacing enables lower boom height to reduce spray drift
• Built on proven VG design with enhanced durability
• Stronger and lighter than ever
• Replaceable wearing parts for reduced downtime and lower maintenance costs
• High-spec sensors with excellent IP ratings and no moving parts
• Future-ready design compatible with wider boom configurations
• Integrated with new tank and plumbing for improved balance and low centre of gravity
• Refined hydraulics and rams for smoother, more precise operation
• Seamless performance with Bateman Boom Levelling system
• Available in widths from 24m to 42m

The new Generation IV VG boom represents a considered progression, combining proven concepts with targeted innovations to deliver a more flexible, efficient and operator-friendly spraying solution.

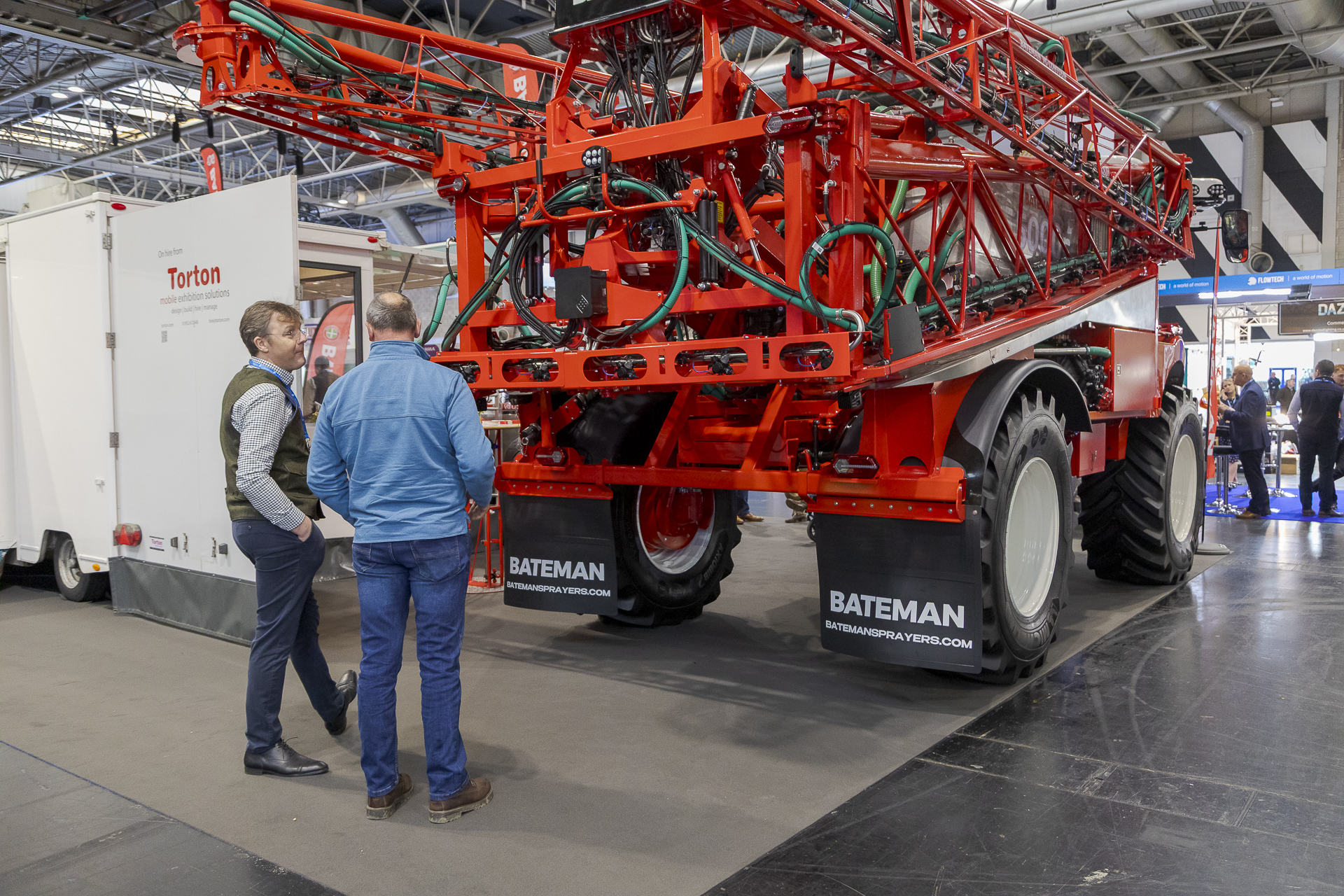

Bateman CEO and Chief Designer Jason Bateman believes this new boom will enable operators to work in conditions previously unthinkable:  “Our VG boom has always come into its own when spraying on more challenging and undulating ground. We’ve engineered our latest boom to provide a spraying platform that goes lower, is more stable and resistant to the demands of intensive crop spraying.”

Bespoke boom configurations are available through Bateman Special Projects
